304 stainless steel reverse dutch woven wire mesh filter screen for extruder
SS mesh filter screen for extruder basic information
Name : 304 stainless steel reverse dutch woven wire mesh filter screen for extruder
Material: SUS302, 304, 201,316 316L etc
Type: Plain/Twill/Reversible
Application:Special for Extruder
Certificate: ISO9001:2000 ,SGS
Standard roll size: Standard length of stainless steel wire mesh: 10m or 30m standard roll length of stainless steel wire mesh.
Packing: Waterproof paper inside,plywood case outside
density that the square mesh cannot reach. So this mesh is the fine filtration of the dense mesh. Usually, the warp wire diameter is larger than weft. But the Auto screen belts for screen changer is on the contrary, its weft wire diameter is larger than warp.
Stainless steel reverse dutch woven screen specification
| Stainless steel twill dutch weave wire mesh specification |
| Mesh | Wire dia(mm) | Micron | | Mesh | Wire diameter(mm) | Micron |
| 20*150mm | 0.45*0.35 | 138um | | 165*1400 | 0.65*0.04 | 15 |
| 20*200 | 0.35*0.28 | 115um | | 200*1400 | 0.07*0.04 | 14 |
| 20250 | 0.25*0.21 | 87um | | 165*1480 | 0.065*0.04 | 13 |
| 30*250 | 0.25*0.21 | 85um | | 165*1550 | 0.065*0.035 | 13 |
| 30*300 | 0.26*0.19 | 77um | | 200*2000 | 0.05*0.028 | 12 |
| 32*360 | 0.23*0.16 | 55um | | 203*1500 | 0.056*0.036 | 9 |
| 40*400 | 0.19*0.135 | 58um | | 250*1900 | 0.04*0.028 | 8 |
| 50*500 | 0.13*0.11 | 46um | | 250*1600 | 0.05*0.032 | 8 |
| 32*500 | 0.18*0.11 | 54um | | 285*2100 | 0.036*0.025 | 7 |
| 60*600 | 0.13*0.09 | 38um | | 300*2100 | 0.036*0.025 | 6 |
| 80*600 | 0.12*0.09 | 35um | | 317*2100 | 0.035*0.025 | 5 |
| 80*700 | 0.12*0.09 | 32um | | 325*2300 | 0.035*0.025 | 5 |
| 100*800 | 0.1*0.065 | 22um | | 350*2600 | 0.03*0.022 | 4.9 |
| 120*1000 | 0.08*0.053 | 20um | | 400*3000 | 0.03*0.018 | 4.5 |
| 150*1200 | 0.065*0.053 | 16um | | 500*3500 | 0.025*0.015 | 3 |
Stainless mesh filter screen weave patterns /styles
1. Plain weave is warp yarn intersect each pass through each of the upper and lower weft and weft yarn diameter as the thickness,warp and weft to weave a 90 degree angle.Founder comparative plain weave mesh, a uniform mesh size.
2.Twill weaving is a weaving method in which each warp thread crosses each two weft threads and each weft thread crosses each two diameter threads.This woven screen has super abrasion resistance .
3.Dutch weave is the warp and weft have different wire diameter and different meshes.The warp and the weft are dense.The warp and weft are thick.A stable filtreation performance,fine,high accuracy.
Stainless steel mesh filter screen application
screen offers wide range filter screens for automatic,continuous screen changers used for polymer melt filtration in every segment of plastics processing including:brown film,blow molding,sheet and film extusion,filaments & fibers,pipe and profile,pelletizing,

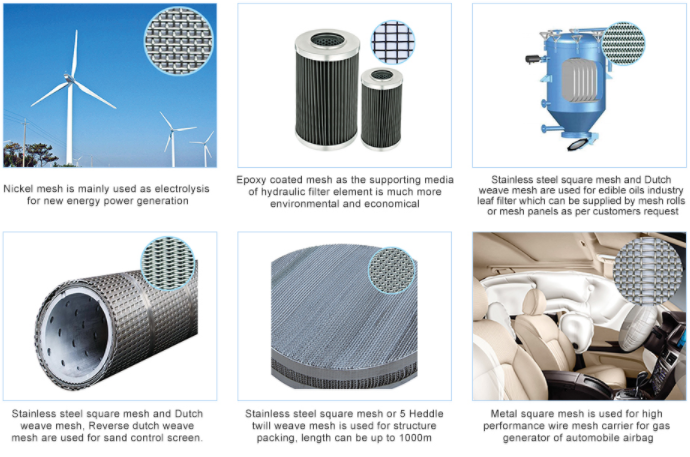

Widely used in aerospace,petroleum,chemical,chemical fiber,cachinery,plastic products,research and plastic melt filter,molding machine belt type filter conveyor industries.
