Outdoor Non Slip Safety small hole O Grip Strut Safety Grating Stair Tread
Outdoor Non Slip Safety small hole O Grip Strut Safety Grating Stair Tread Introduction

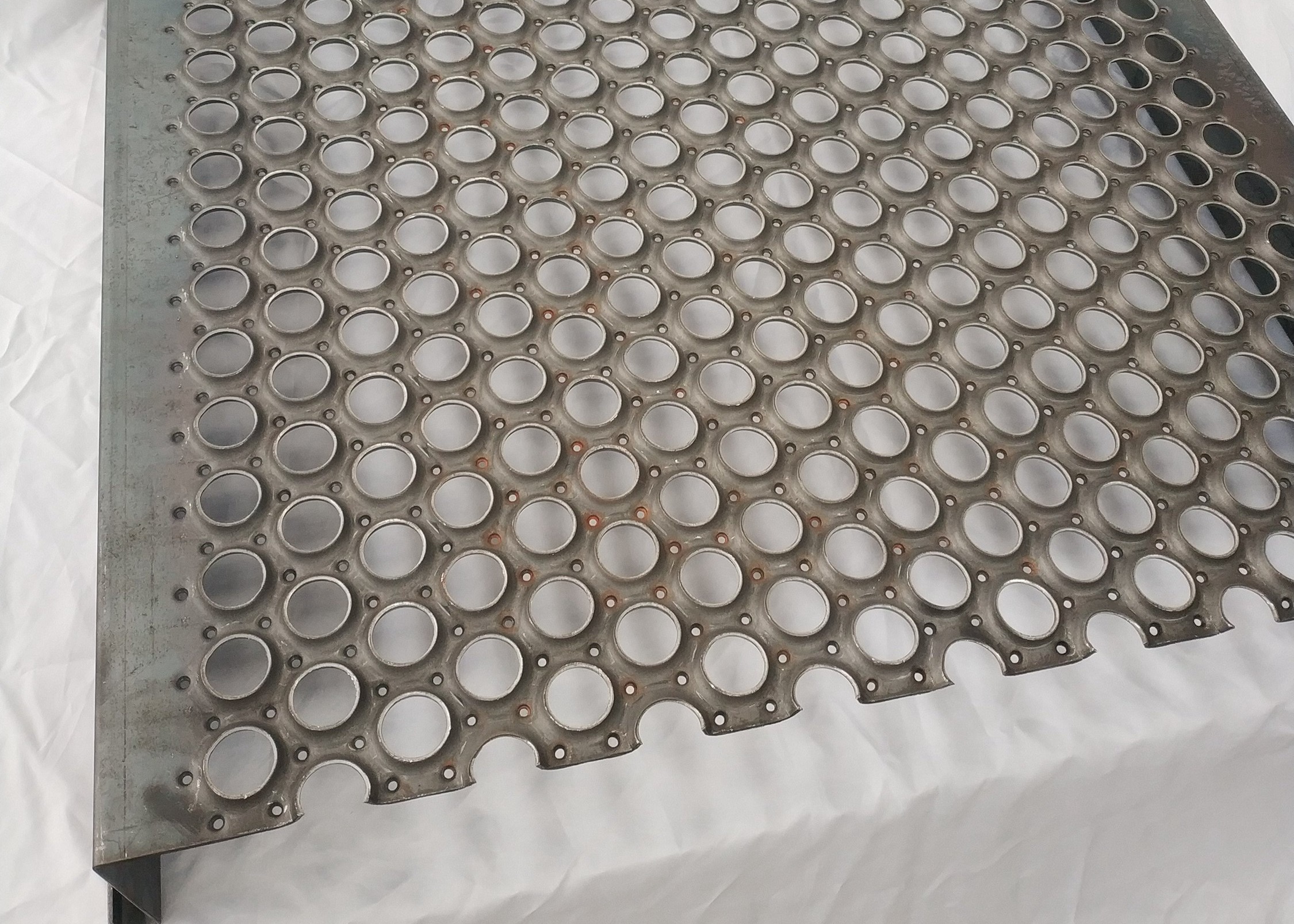

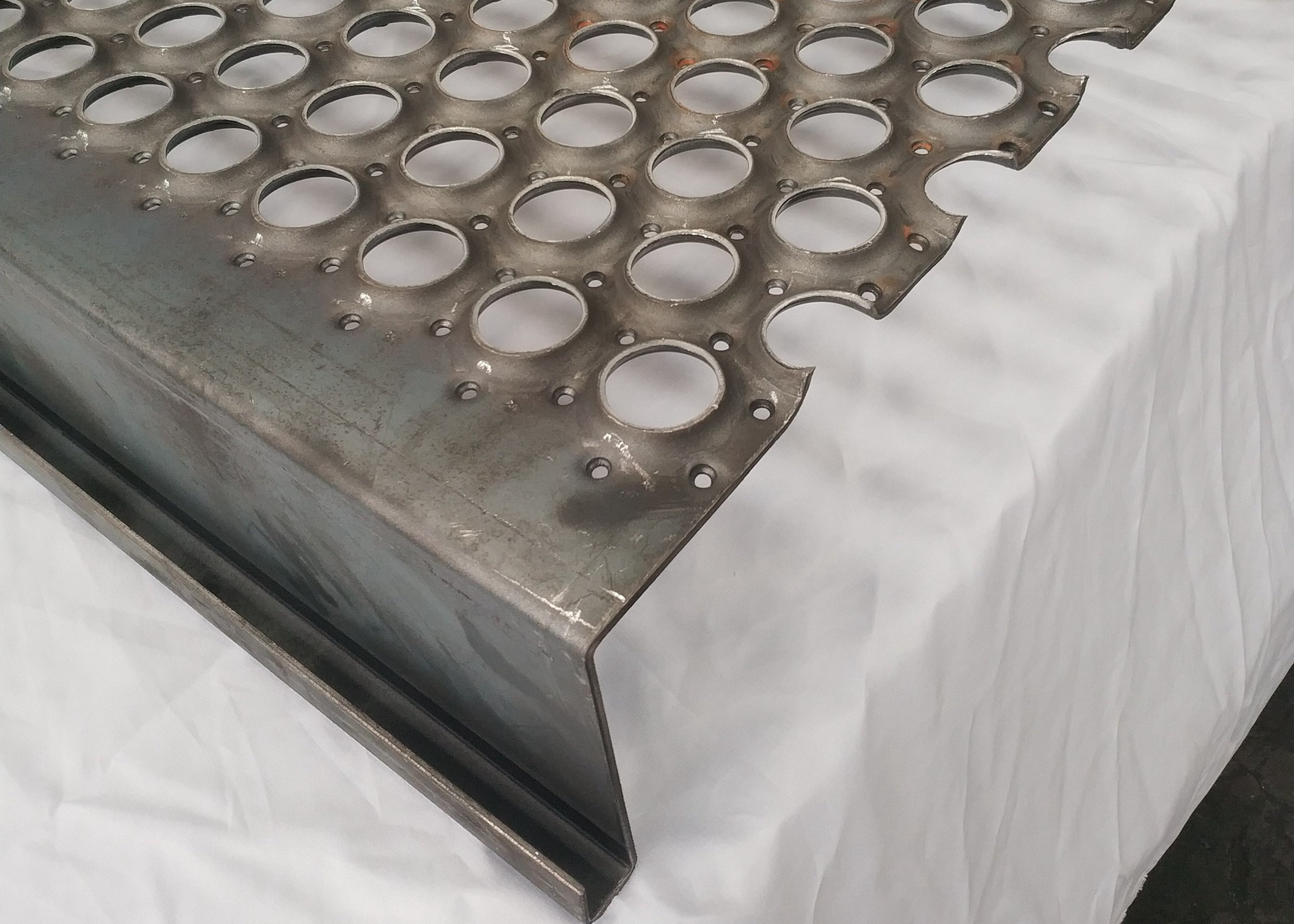

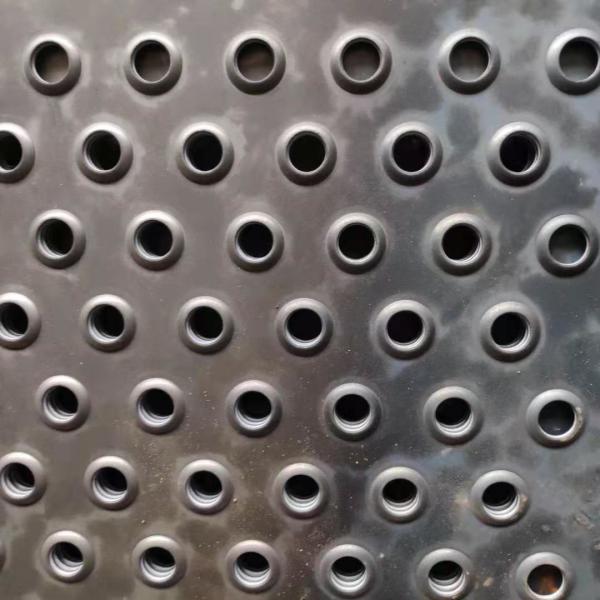

Outdoor Non Slip Safety small hole O Grip Strut Safety Grating Stair Tread is a one - piece sheet metal grating with a slip-resistant walking surface of raised perforated buttons surrounding large debossed holes.
It is widely used for many places, such as catwalks,mezzanines,stair treads and work platforms wherever safe,comfortable footing on open flooring is needed.
Outdoor Non Slip Safety small hole O Grip Strut Safety Grating Stair Tread Specification
| Product name | SERIES NAME & CONSTRUCTION TYPE – GRIP STRUT (Plank, Walkway), Heavy-Duty GRIP STRUT (Plank, Walkway), PERF-O GRIP (Plank Walkway), GRATE-LOCK Interlocking Plank, TRACTION TREAD Plank, DIAMONDBACK Extruded Interlocking Plank, Heavy-Duty Extruded Plank |
| Material | Steel, Aluminium,Stainless steel, Bronze, Brass, Titanium, and so on. |
| Thickness | GAUGE (THICKNESS) – Material gauge numbers or thickness in inches (specify as Extrusion for DIAMONDBACK Extruded Interlocking
Plank and Heavy-Duty Extruded Plank) |
| Hole shape | Hexagonal Hole,Factory supply anti-slip metal perforated vehicle steps, Diamond,Rectangular Perforations,Octagonal Cane,Precian, |
| Plum Blossom Etc,can Be Made As Your Design |
| Number of openings to width, surface profile, width of Plank/ Walkway and channel size. | Depth for Plank, height for Walkway.(e.g. 5-Diamond (11-3/4" width), 2" channel depth)SURFACE PROFILE, WIDTH & CHANNEL SIZE |
| Plank Grating Application | 1.Interior/exterior application |
| 2.Loading, span and support requirements |
| 3.Traffic requirements (hand cart,ADA, pedestrian, etc.) |
| Features | 1. Can Be Formed Easily |
| 2. Can Be Paint Or Polished |
| 3. Easy Installation |
| 4. Attractive Appearance |
| 5.Wide Range Of Thicknesses Available |
| 6. Largest Selection Of Hole Size Patterns And Configurations |
| 7.Durable |
| Package | 1. On Pallet With Waterproof Cloth |
| 2. In Wooden Case With Waterproof Paper |
| 3.In Carton Box |
| 4.In Roll With Woven Bag |
| 5. In Bulk Or In Bundle |
| SPECIAL | Requirements such as fabrication, notching, cut-outs, Stair Treads (size, and Nosing type if desired), non-standard tolerances,etc. |
Outdoor Non Slip Safety small hole O Grip Strut Safety Grating Stair Tread Features
1. Can Be Formed Easily.
2. Can Be Paint Or Polished.
3. Easy Installation.
4. Attractive Appearance.
5.Wide Range Of Thicknesses Available.
6. Largest Selection Of Hole Size Patterns
7.Largest Selection Of Configurations.
8.Durable.
Outdoor Non Slip Safety small hole O Grip Strut Safety Grating Stair Tread Application
In catwalks, safety gratings serve as lightweight and economical flooring components with minimal maintenance requirements. They improve safety conditions for employees using the walkway by mitigating the risk of slipping due to the presence of ice, moisture, and oil accumulation. In large facilities, they facilitate better lighting conditions as the holes in the individual grating sections allow light to pass through relatively unobstructed.
In rooftop walkways, the exterior walking surfaces are susceptible to the buildup of ice, chemical film, mud, and other slick substances. The design of safety gratings allows these compounds—in solid, liquid, and gaseous form—to easily fall through the holes, facilitating cleaning and maintenance operations. This quality makes it easier to establish well-defined and safe walking paths for workers.
In pedestrian walkways, safety gratings help create safe, temporary and permanent walking paths in a wide range of public spaces, such as streets, gardens, and ports. The perforated or expanded metal components facilitate the ventilation of air and water, which ensures safer conditions for both walking and vehicle-assisted pedestrians, including those with high heels, wheelchairs, strollers, scooters, and skateboards.
Packing
Iron pallet+satefy belts+PVC films.
It can be customized.
